XControl operation
Touch-button control is standard. A large LED-backlit LCD shows the remaining time, wash temperature and machine fault codes.
Home / Laundry Equipment / Primus FX105
PRIMUS
Able Laundry commercial washer-extractors

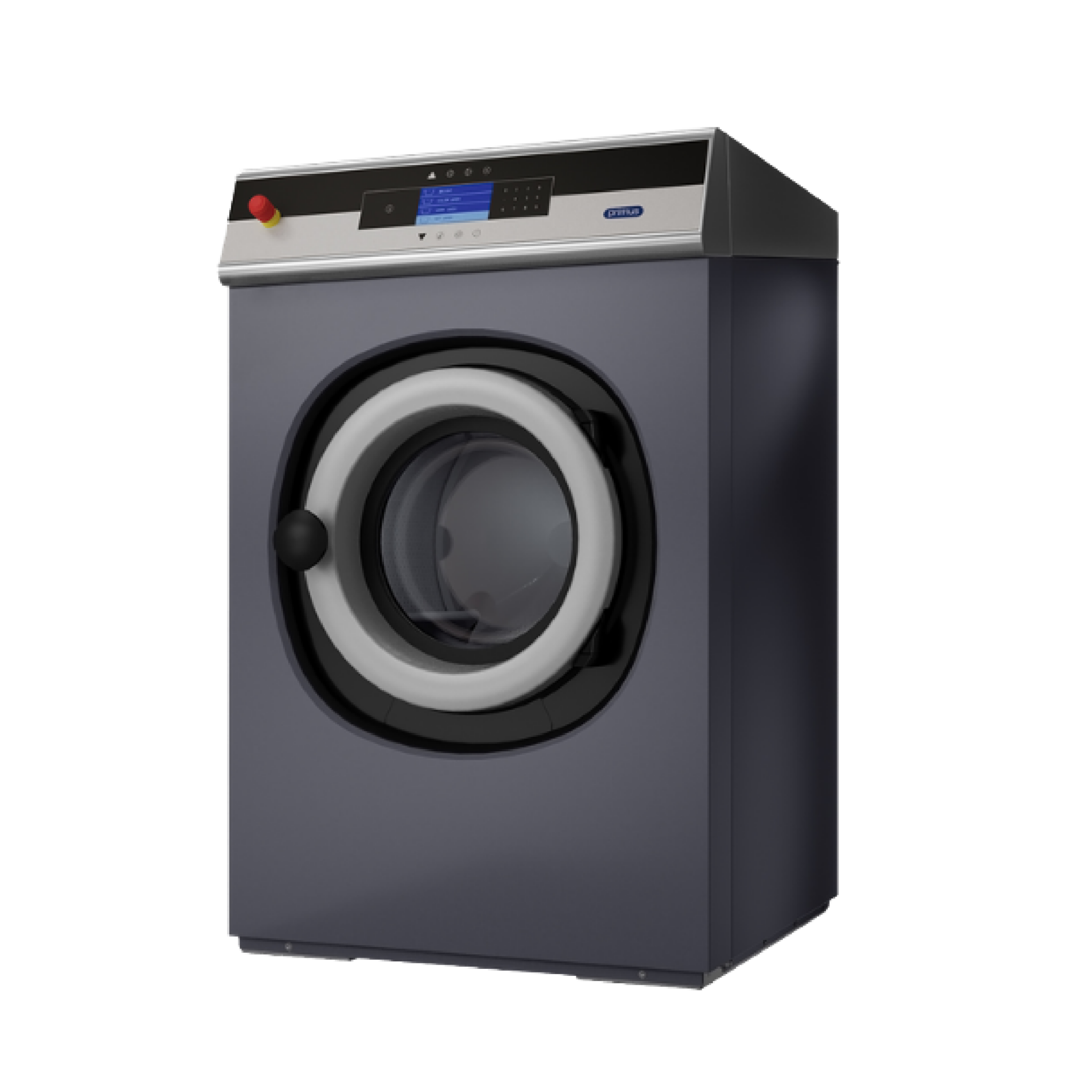

Primus FX105 11kg Commercial Washing Machine
A high-spin, freestanding commercial washer-extractor created for demanding laundry environments, with a 105 litre drum, up to 12 kg maximum dry-load capacity and flexible operator or payment controls.
11 kg
rated load
rated load
Rent, lease or buy
A robust washer for professional laundries
11 kgRated 1:10 load
12 kgMaximum 1:9 load
210 kgNet machine weight
The Primus FX105 is a high-spin commercial washing machine designed for busy sites that need dependable daily performance. It is available as a manual OPL machine or with coin-operated control, while Nayax cashless payment can be specified for contactless use.
Primus began manufacturing laundry equipment in Belgium in 1911 and became part of Alliance Laundry Systems in 2014. The FX range draws on that long industrial-laundry heritage, combining durable components with a soft-mount, freestanding format suited to demanding commercial use.
The anthracite-grey galvanised front and side panels give the machine a modern, understated appearance, while the stainless-steel top is fitted as standard. A large 410 mm door and practical handle make it easier to load and unload bulky linen.
A patented four-compartment soap box supports accurate use of powders and liquids. The FX105 is also ready for automatic chemical dosing, allowing an external system to dispense liquid detergents without repeated operator intervention.
Performance and control
Commercial technology that supports consistent results
The FX105 combines straightforward daily operation with upgrade paths for sites that need more advanced programming, traceability or specialist textile care.
⌘
Advanced programming
Optional XControl Plus and Trace-Tech software add fully programmable cycles and USB connectivity.
◌
Automatic dosing ready
Connect to an external dosing system for accurate, repeatable detergent and chemical delivery.
↻
Efficient extraction
A listed 1165 rpm spin produces a 400 G-factor, designed to keep residual moisture below 50%.
≈
Optiload and Cascade drum
Load sensing helps match water use to the wash load, while Cascade drum design assists washing and extraction.
◇
Wet-cleaning capability
With suitable controls and software, FX machines can support SOFTWASH-XTREME CARE wet-cleaning processes.
Optional ozone integration
Extend the system with specialist disinfection
The Primus FX105 can be planned alongside a compatible ozone laundry system. The original supplier information cites systems such as Otex and iZone o3, which are designed to support low-temperature disinfection and reduced energy use. Any microbiological reduction claim belongs to the selected ozone system and must be verified against that system’s current technical evidence, commissioning and operating conditions.
Primus FX105 technical specification
Dimensions, capacity and services
Drum volume105 litres
Loading capacity at 1:1011 kg
Maximum loading capacity at 1:912 kg / 26 lb
Door diameter410 mm
Maximum spin speed1165 rpm
G-factor400
Heating power6 / 9 kW
Electrical supply240 / 415 V
Recommended fuse32 / 16 A
Dimensions H × W × D1225 × 795 × 795 mm
Net weight210 kg
Available configuration options
Specify the FX105 around your laundry
Able Laundry can discuss the appropriate operating, payment, cabinet and textile-care configuration for your site.
Coin or token operation and central payment
Nayax cashless and contactless payment
XControl Plus programmable microprocessor
Trace-Tech software and USB connectivity
Full stainless-steel cabinet
SOFTWASH-XTREME CARE wet cleaning
Steam heating configuration
Rising plinth
Matching and replacement equipment
Build a complete laundry line
Primus DX11 vented dryer
Pair the washer with the corresponding commercial vented tumble dryer where the site and throughput requirements make it suitable.
View referenced model ↗Replacement for Primus FS10
The referenced supplier describes the FX105 as a like-for-like replacement for the earlier Primus FS10.
Alternative 11 kg machines
It may be considered alongside the Electrolux W5105H, Fagor LA11-TPE and IPSO IY105. Able can compare current options.
Alternative Primus capacities
If the FX105 is not the right size, the Primus professional range includes smaller and larger commercial washer-extractors.
SC65 · 6.5 kgFX80 · 8 kgFX135 · 14 kgFX180 · 18 kgFX240 · 24 kgFX280 · 28 kgFX350 · 35 kgFX450 · 45 kgFX600 · 60 kgFS800 · 80 kgFS1000 · 100 kgFS1200 · 120 kg
Purchase options
Buy, lease or ask about rental
Able Laundry can structure a quotation around your preferred route, selected accessories, installation requirements and ongoing support. Availability and terms are subject to assessment and written quotation.
Outright purchase
Own the machine from day one, with delivery, installation, dosing and appropriate service support itemised for your site.
Commercial lease
Spread the equipment cost over an agreed term, subject to credit approval and the finance provider’s terms. Installation and support may be included.
Rental enquiry
Ask Able whether a fixed-term rental or supported equipment package is available for your organisation and location.
After-sales care
Support beyond installation
Able’s commercial laundry service covers equipment advice, delivery, installation, maintenance and breakdown support. Engineers work with popular laundry brands and can help keep equipment operating at peak performance, including machines not originally supplied by Able.
- Site-specific equipment advice
- Professional delivery and installation
- Automatic dosing and chemistry support
- Planned maintenance packages
- Same-day, 24-hour or 48-hour breakdown-cover options
- Repairs and replacement-parts support
Suitable establishments
Built for a wide range of sectors
Care homesNursing homesHospitalsHotels & B&BsSchools & universitiesNurseriesLaundriesContract cleanersFood processingSports clubsGyms & spasLeisure centresVeterinary hospitalsKennels & catteriesEquestrian centresCampsites & caravan parksSheltered housingPrisons & hostelsHair & beautyDry cleaners
Primus FX105 FAQs
Frequently asked questions
What load can the Primus FX105 wash?
The referenced listing gives an 11 kg rated loading capacity at 1:10 and a maximum 12 kg / 26 lb capacity at 1:9, with a 105 litre drum.
Does the FX105 need to be bolted down?
The FX series is described as a soft-mount, freestanding washer-extractor. Able should still confirm floor loading, clearances, services and installation requirements.
Can it connect to automatic chemical dosing?
Yes. The FX105 is prepared for an external liquid detergent and chemical dosing system.
Can it be supplied for coin-operated or cashless use?
Yes. Coin/token operation and central payment are listed options, and Nayax can add contactless card and mobile-wallet payment.
Is it suitable for care-home infection-control laundry?
The referenced configuration includes sluice and thermal-disinfection programmes and WRAS approval. The complete laundry process, validation, chemistry, segregation and local policy must be assessed.
What is the warranty?
Able’s current laundry equipment brochure describes a three-year warranty for the premium FX range. Exact warranty terms will be confirmed in writing.
Free equipment consultation
Is the Primus FX105 right for your site?
Tell an Able account manager about your throughput, services, infection-control needs, dosing and payment requirements.
